SDW-32

SDW-32

Description

  • SDW-32 CNC lathe (guiding-bush and non-guiding bush type) is used new and high performance Fanuc controller systems. The controller can control dual systems (7 axes) including 5 feed axes (Spindle Z1, Gang tool X1 and Y1, Sub Spindle X2 and Z2). The spindle and sub spindle have indexing function and C-axis control, which can perform contour milling. Material remains can be efficiently reduced with use of guiding-bushless holder,
  • Motor built-in spindle can perform high speed cutting and avoid vibration and noise so precise cutting can be achieved. With high resolution sensor, machine can perform precise C- axis control, contour milling and eccentric drilling and tapping
  • Parts conveyor can avoid finished work-piece from collision and coolant collecting plate can prevent coolant leakage

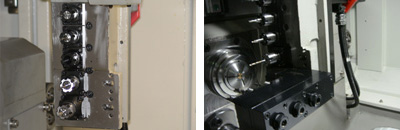

  • Back 4 rotary tools are changable. With use of fixed tools, machine can perform center drilling, tapping, boring, and internal cutting. Machine can perform end-face eccentric drilling, tapping or C-axis control contour milling with the use of rotary tools.
  • First three positions of cross rotary toolings,used for drilling and milling, are fixed. The buttom 2 positions are changable for plug-in special tools . Cross rotary toolings can perform cross drilling, tapping and cylindrical interpolation milling. Special tools such as front eccentric rotary unit can perform eccentric drilling, tapping and polar coordinate interpolation milling.
  • Control systems use new and high efficiency Fanuc controller and other system such as Syntec, Mitsubishi or Simens are available . Machine can perform dual systems control and machining independently as well as synchronous and simultaneous turning for long work-piece.
Workingcapacity Spindle
Max. turning diameter    ∮32 mm
Max. drilling diameter   ∮13 mm
Max. tapping diameter   M12 X P1.75
Cross live tooling max. drilling diameter  ∮10 mm
Cross live tooling max. tapping diameter  M8 X P1.25
Spindle height    1070 mm
Sub Spindle
Max. turning diameter    ∮32 mm
Max. drilling diameter   ∮13 mm
Max. tapping diameter   M12 X P1.75
Back live tooling max. drilling diameter  ∮10 mm
Back live tooling max. tapping diameter  M8 X P1.25
Motors     Spindle motor (Built-in )    5.5/7.5 Kw
Spindle RPM     70000  PM
Sub spindle motor    2.2/3.7 Kw
Sub spindle RPM    7000 RPM
axis servo motor    1 Kw
axis rapid feed rate   24 m/min
Cross side and back live tooling servo motor  1 Kw
Cross and back live tooling RPM   50000 RPM
Tooling System   O.D tools size     □ 16mm
Number of O.D tools     6
I.D tools size    C32-ER20 , C22-ER16
Number of I.D tools    ER20/2pcs , ER16/2pcs
Cross live tooling     ER16
Number of cross live tooling   5
Back live tooling    ER16
Number of back live tooling   4
General    Controller     Fanuc / Syntec
Machine power supply    AC/ 3∮220 V
Oil tank capacity    190 L
Machine dimension (LxWxH)    3035 x 1844 x 2072
Machine weight     3600 Kg
Coolant pump motor    1 HP
Hydraulic motor    1 HP
  • Broken cut-off tool detector
  • Parts conveyor
  • Spindle and sub spindle collects X1
  • Tool box
  • Front drilling shaft
  • Back drilling shaft
  • Cross rotary tool
  • Back rotary tool
  • Guiding-bushless holder
  • Auto bar feeder
  • Chip conveyor
  • High pressure pump
  • Auto voltage stabilizer
  • Special rotary tooling
